Description

Key Specifications:

Imaging Capabilities:

• 3D and 2D imaging in a single unit
• Ø 50 x 50 mm and 130 x 85 mm 3D volumes
• High-resolution CsI sensor (pixel size: 49.5 μm)
• S-Pan technology for sharper images and error compensation
• Metal artifact reduction for improved image clarity

Radiation & Exposure:

• 62% dose reduction in SQ mode
• Adjustable imaging resolution (80 or 120 μm)
• Short scanning times (2 to 18 seconds)

Technical Specifications:

• X-ray Generator: 50 – 99 kV, 4 – 16 mA, 170 W
• Focal point: 0.5 mm
• Total filtration: 2.8 mm AL
• Scanning times: 2 – 18 seconds
• 2D magnification factor: 1.26
• Device Dimensions & Installation:
• Height: 1406 – 2250 mm
• Width x Depth: 990 x 1130 mm
• Weight: 180 kg
• Height adjustment range: 844 mm
• Installation: Wall-mounted

Power Requirements:

• Voltage: 200 – 240 V
• ACFrequency: 50/60 Hz
• Rated power: 2.2 kVA

User Interface & Software:

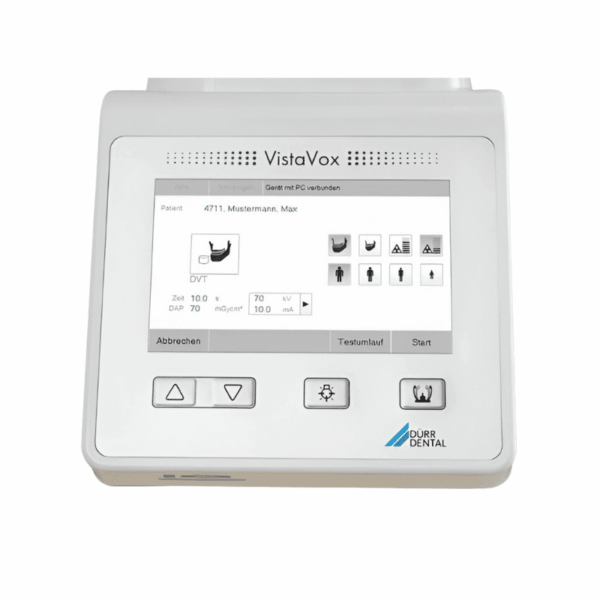

• 7″ touchscreen for intuitive operation

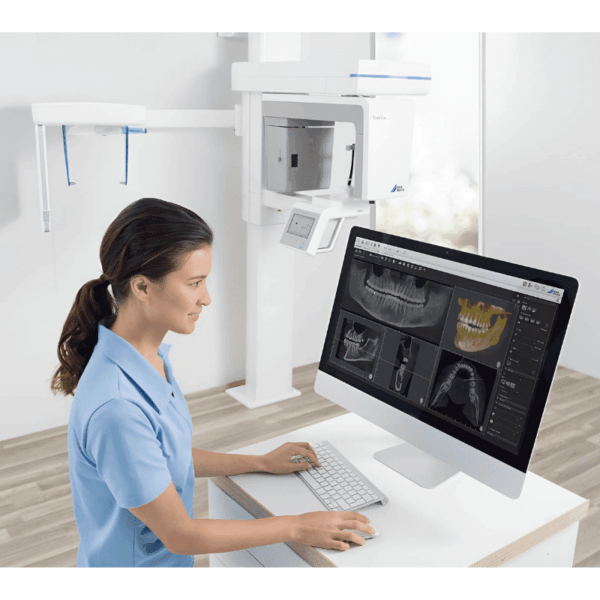

• VistaSoft software for image processing and diagnostics
• Network-capable with DICOM support
